React WebGL

Run a Unity WebGL build inside Creator Studio

info

Before start, make sure you have installed WebGL for Unity. You can find download option in File > Build Settings

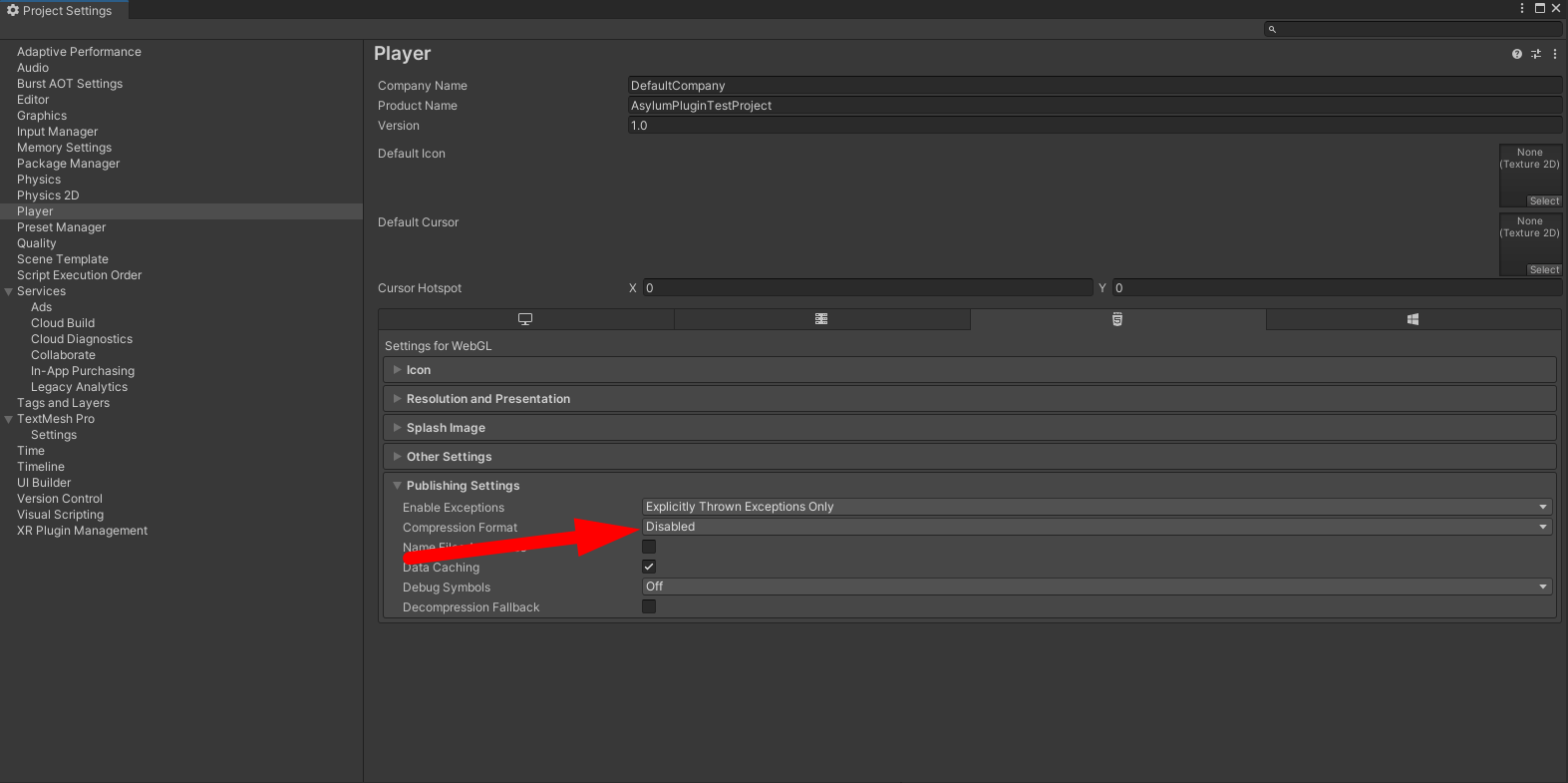

1. Change the Compression format in the Edit > Project Settings > Player > WebGL settings > Publishing settings to the Disabled

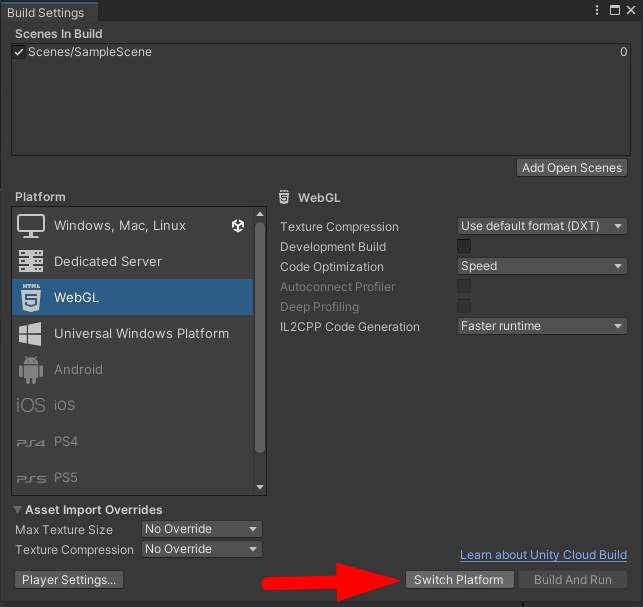

2. (Optional) Switch platform to the WebGL in the File > Build Settings, if another platform is chosen

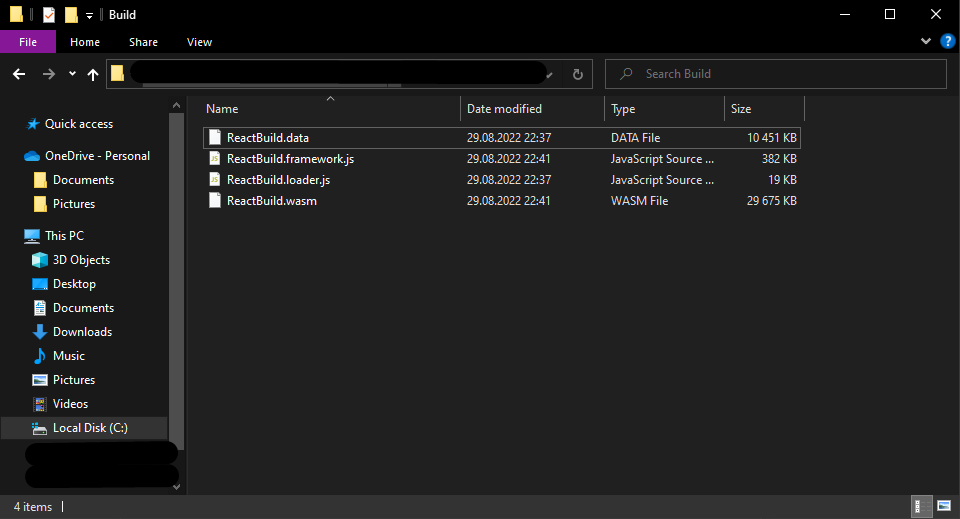

3. Form WebGL build: File > Build Settings > Build. The output WebGL build contains 4 files in the BuildDirectory/Build:

   • BuildName.data
   • BuildName.framework.js
   • BuildName.loader.js
   • BuildName.wasm

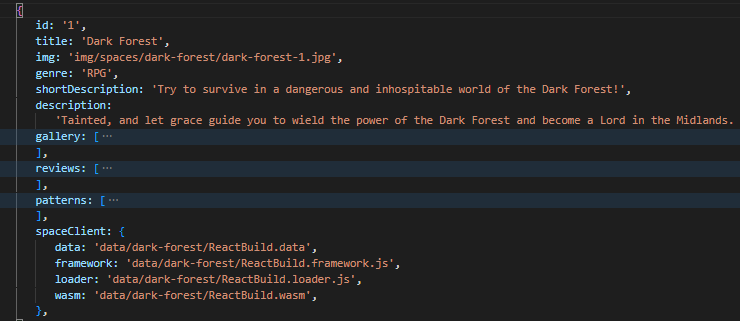

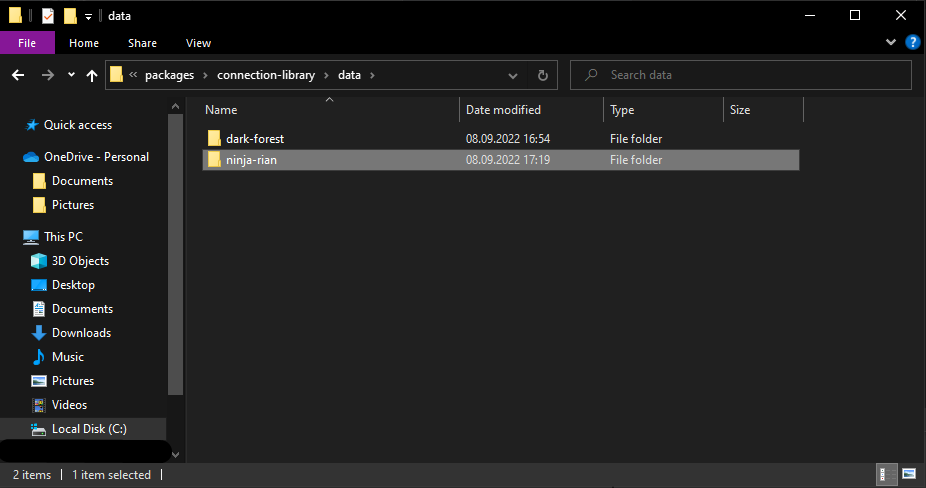

4. Place these files inside asylum-ui/packages/connection-library/data/build_name and add new Space in const spaces: ISpaceMockData[] array in asylum-ui/packages/connection-library/seed/mocks.ts. Specify the correct paths to your Unity build in spaceClient and list of supportedBlueprints (if you run seed script, you will have default NFT blueprints with ids [0, 1, 2, 3]):

   asylum-ui/packages/connection-library/seed/mocks.ts

   export const spaces: ISpaceMockData[] = [
   ...
   {
       id: 'space_id',
       title: 'Your Space',
       img: 'image_url',
       genre: '...',
       shortDescription: '...',
       description: '...',
       gallery: [...],
       supportedBlueprints: [0, 1, 2, 3],
       spaceClient: {
            data: 'data/build_name/BuildName.data',
            framework: 'data/build_name/BuildName.framework.js',
            loader: 'data/build_name/BuildName.loader.js',
            wasm: 'data/build_name/BuildName.wasm',
       }
   }
   ...





5. Follow the steps of Docker setup and run the following command in terminal:

   docker-compose up
   caution

   If you had Docker setup before, you have to delete asylum-ui image and container and run docker-compose up again, otherwise new changes won't be applied.

   :::caution

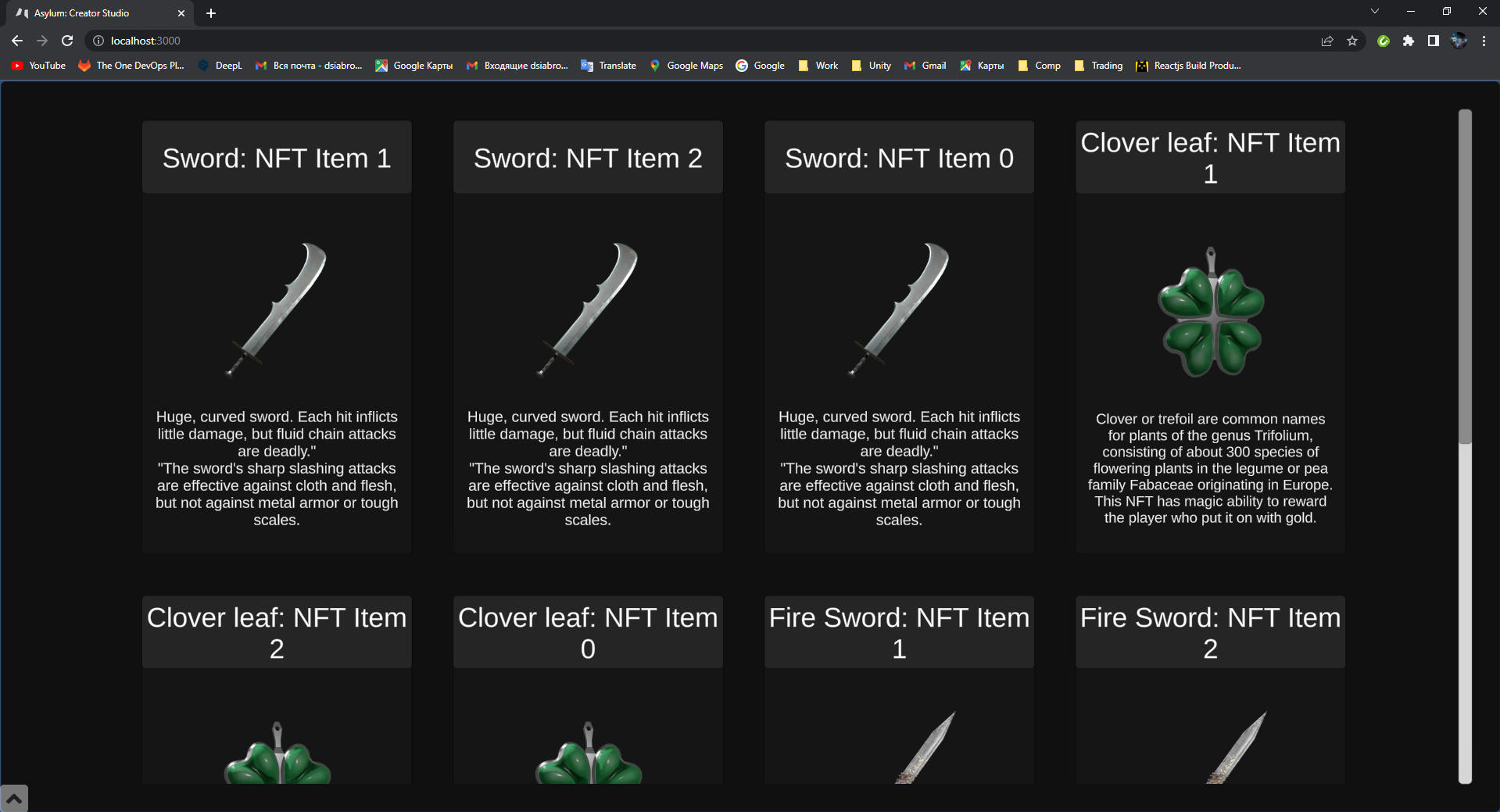

   To see the proper result you should have items minted on your chain. To do this you can:

   • mint items manually from Blueprints: Tutorials: Items Minting,

   • or reseed data with items using script: Docker Setup: Reseed Data

     :::

6. Open a web browser and go to the http://localhost:3000/

7. Add the wallet and connect to the local node

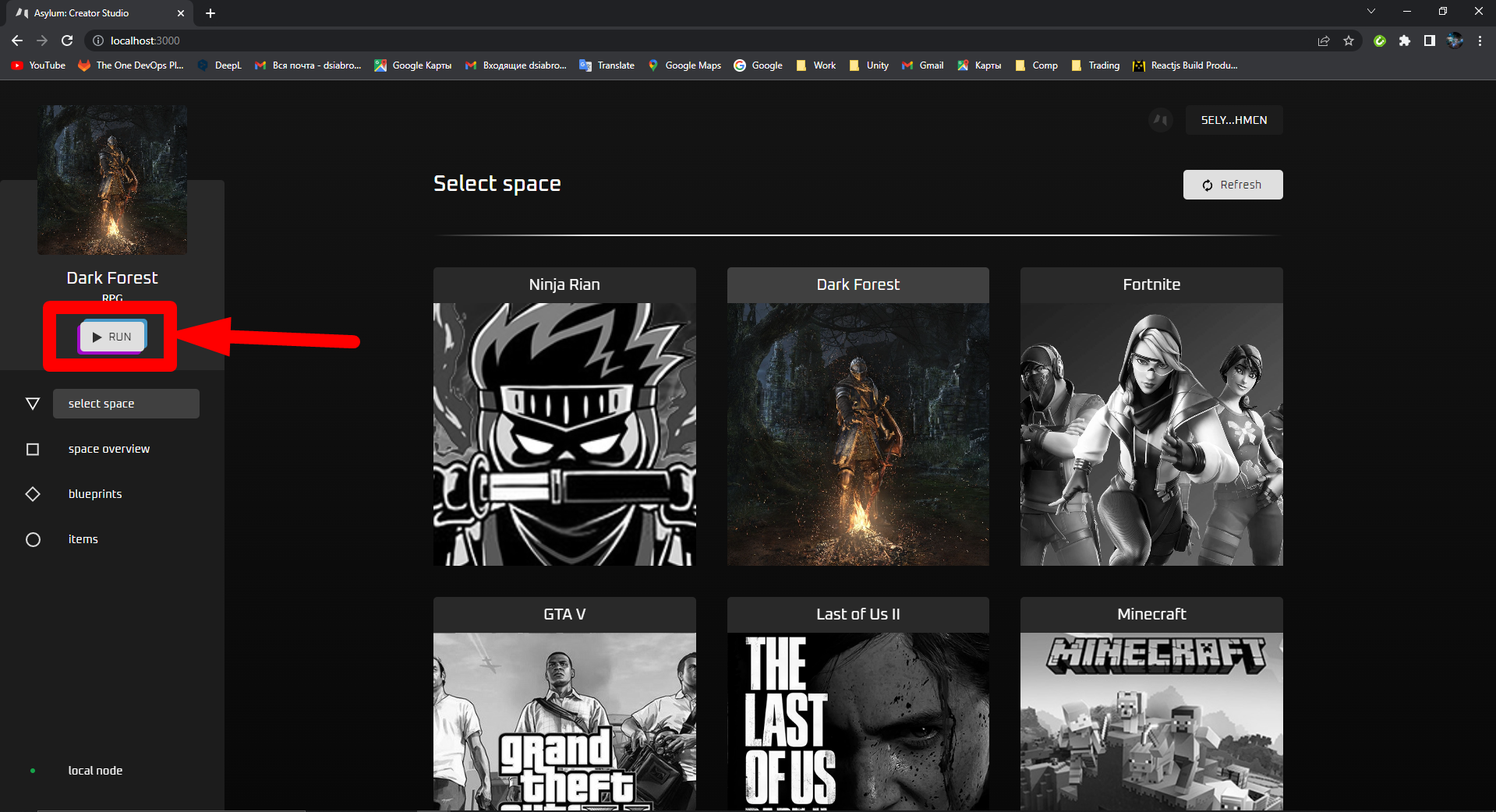

8. Choose the space and press the Run button.



9. The build is running
